I. Water immersion /weather resistant intumescent fire protection coating, for combustible electrical & communication cables
Cable fire suppression coatings are thus a critical step in achieving fire safety and ideally they should provide the following three key protections:
FIRE RESISTANCE : Protection of cables against direct fire exposure /fire survivability – circuit integrity : (Governing international test standard – IEC 60331-11)
FLAME RETARDANCE : Prevention of fire propagation on cables : (Governing international test standard – IEC 60332-3-21, IEEE 383 & FM 3971)
SMOKE PREVENTION : Preventing toxic smoke generation /Outgassing : (Governing international test standard – NES-713 & NCD-1409)
In addition, the above two protections, should be tested & certified, for a minimum period of >30 minutes, ideally at a fire temperature of >1100°C (Hydrocarbon).
The longer this protection time span, naturally the more superior the coating /protection capability.
The cable coating should also be water immersion /weathering resistant.

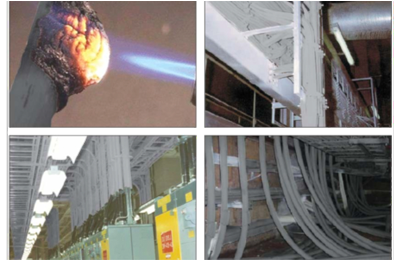

Firex EC 43 is a heavy-bodied, water-based intumescent coating which is designed to prevent flame spread along the jacketing of electrical (or other) cables and to provide a thermal barrier for protection against heat damage caused be external fires /internal short circuiting .
Firex EC 43, today, uniquely provides the longest time span fire protection, in the world, in both these two criteria’s, at direct fire exposure >1100°C (Most cable coatings provide either only one of these protections, or only for a minimum time interval of 2-5 minutes and that too only against low intensity ISO /Cellulosic fires /750°C ).

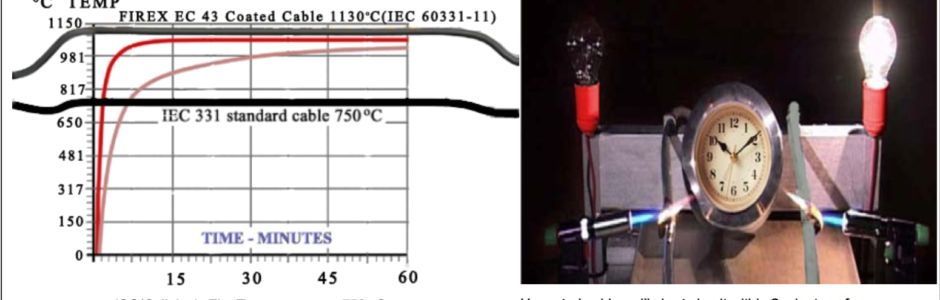

Worlds first cable fire suppression coating to pass IEC 60331-11, Fire survivability
– Circuit integrity under hydrocarbon fire direct exposure (1130°C)
–Cable fire : 60 MINUTES protection /Fire survivability – Circuit integrity with re-energisation. (Also passes 50 minutes /2mm DFT# ) : FIRE RESISTANCE
For More Specification Click Here To Download

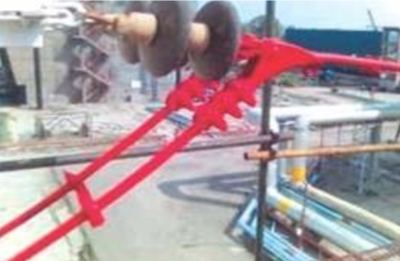

High voltage 11 kv insulation & protection coating.
Heavy duty, high BDV, synthetic liquid epoxy-rubber based, 11 KV insulation & protection coating, available in R, Y, B, colors. With simple paint like application, air dries into a tough, flexible, non-flammable, non-ageing insulation coating, enabling quick & easy protection in a variety of diverse applications viz – power & telecom cables, bus-bars, junction boxes, battery systems…
Excellent dielectric strength, BDV in two brush applied coats/450 microns DFT =>16KV.
Available in multiple colors – Red, Yellow, Blue, for effective protection cum colour coding.
Provides quick & easy protection – brush on like conventional paint yet within hours, uniquely air dries into a tough flexible rubber like coating.
Excellent resistance to moisture, acids & alkalies. Effectively prevents rust & corrosion.
Weather proof & non ageing – once applied will provide lasting protection. Will not loose adhesion, peel, and crack or harden with time (top coat for U.V. protection, in outdoor applications).
Non-flammable. Within 24 hours of application the coating uniquely becomes non-flammable & self extinguishing.

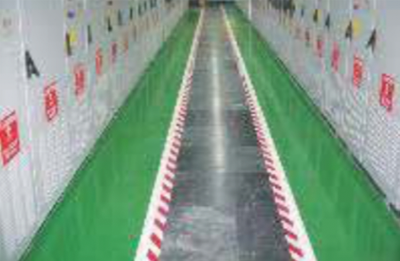

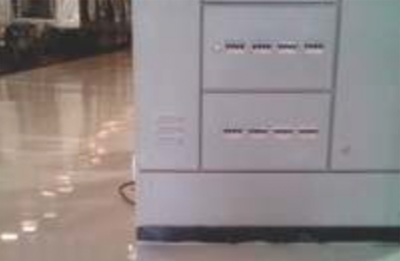

High build – high breakdown voltage solvent free, dielectric flooring, meeting requirements of Class A as per IS 15652:2006
A self–leveling solvent free, high build-high breakdown voltage, protection & insulation coating, developed from an unique cycloaliphatic amine curative, designed to provide insulation safety flooring.
High build – high breakdown voltage, solventfree, dielectric flooring, meeting requirements of Class B as per IS 15652:2006

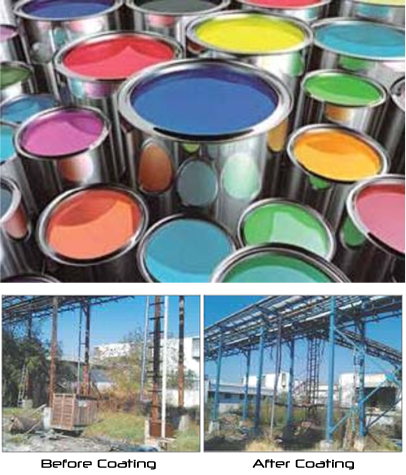

Hybrid, co -polymer, cross linked “liquid plastic” anti-corrosion coating – a superior alternative to conventional primer – synthetic alkyd enamel paint systems – twice the life warrantied.
Forms a tough co -polymer plastic laminate through intermolecular cross linkages & takes a very strong bonding with clean metal surfaces. The resultant coating is impermeable to uids, air & gases.
| Sl # | Primer + Synthetic Alkyd Enamel System | Hybrid Co-Polymer | |
|---|---|---|---|
| 1 | No. of Coats | 1 Primer + 2 Enamel coats | 2 Coats |
| 2 | Cure System | Solvent /Oxidative cure | Co-polymer cross linking |
| 3 | Primer | Yes | Not required. Self priming |
| 4 | Total System Application Time | Primer curing : 6-8 hrs |
1st coat curing : 1 hrs |
| Enamel curing : 4-8 hrs |
Total time to apply system correctly : 2 hrs |
||
| Total time to apply system correctly : 12-16 hrs |
|||
| 5 | Cathodic protection to prevent under coat rusting/Disbondment/corrosion/delamination | Nil | Contains anti corrosive nano additives (zinc compound) |
| 6 | Barrier Impermeability | Limited | Superior due to co-polymer cross-linking |

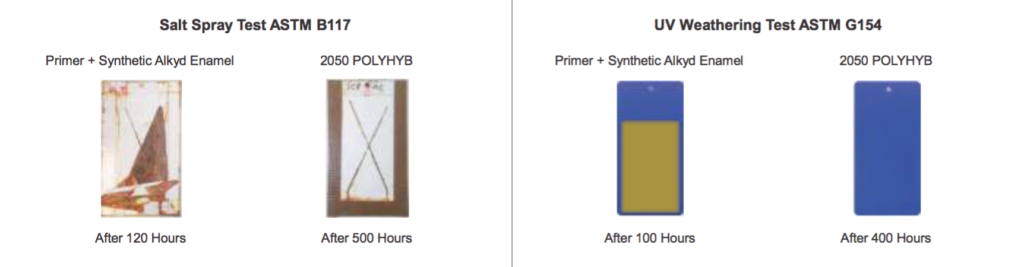

| 7 | Salt spray resistance ASTM B117 | <100 hours | > 500 Hours |
| 8 | UV Weathering Resistance ASTM G154 | 100 hours. Will chalk/discolour rapidly in outd style = “border: 1px solid; padding: 5px;”oor UV exposed conditions | > 400 Hours. Excellent indoor/outd style = “border: 1px solid; padding: 5px;”oor utility. |
| 9 | Water Immersion resistance | Poor. Will blister & peel-off | Excellent (> 7days immersion/No damage) |
| 10 | Humidity Resistance | <400 hours (Blistering observed) | >1000 Hours |
| 11 | Acid/Alkali Resistance | Limited resistance | Good resistance to alkalies & acids. (5% HCL, 5% H SO & 5% NaOH) |
| 12 | Flexibility (Conical Mandrell) – Crack resistance against metal vibration, expansion/contraction | Average (Crack observed after 120°A) | Excellent (No crack up to 180°A) |
| 13 | Fire resistance | Oil based. Flammable | Polymer based. Self – extinguishing |
| 14 | Re-coatability | Limited | Excellent. Easy re-coatability for re-freshing. |
| 15 | Cost/Benefit | Low material cost | Near matching/lower total cost. |
| High application cost | (Keeping in mind lower application costs) | ||
| Short term protection | Warrantied double the protection life of conventional primer + synthetic alkyd enamel systems. | ||
| High hidden cost in terms of metal loss. | |||
| 16 | SUMMARY : | Primer + Synthetic alkyd enamels are an obsolete technology, with low protection capabilities & lifespan. 2050 POLYHYB is a high technology replacement, as will provide both superior protection & durability, AT LITTLE OR NO EXTRA COST. | |

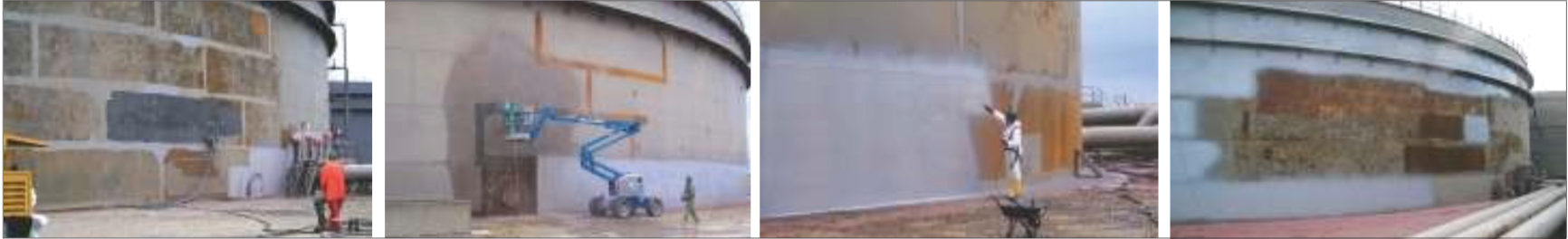

240 Micron DFT, three part (Epoxy Primer + Epoxy Intermediate + PU Top Coat) or two part (Epoxy Mastic + PU Top Coat), systems are today generally used in critical industrial maintenance applications, for corrosion prevention- fluid /gas handling pipelines, storage tanks, surfaces exposed to acidic fumes, coastal areas, high corrosive areas…
Today these systems do not perform adequately, i.e., corrosion & metal loss are extensively seen in industrial applications, generally due to the following reasons:

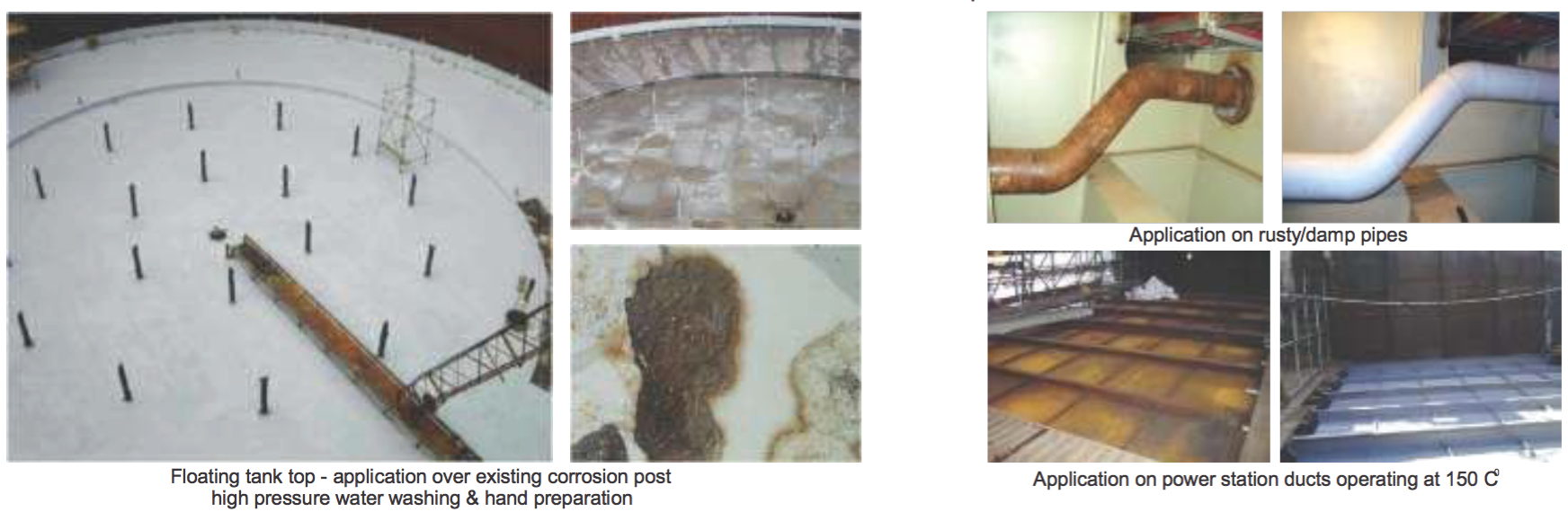

SOLUTION : Modern technology “True surface tolerant” – Ultra low surface tension, epoxy – Zinc & MIO coating systems, designed to provide warrantied barrier corrosion prevention, on ST2 /ST3, manually prepared surfaces, despite the presence of surface contaminants such as, rust, moisture, oily substances as well as absence of a blasting generated anchoring profile.

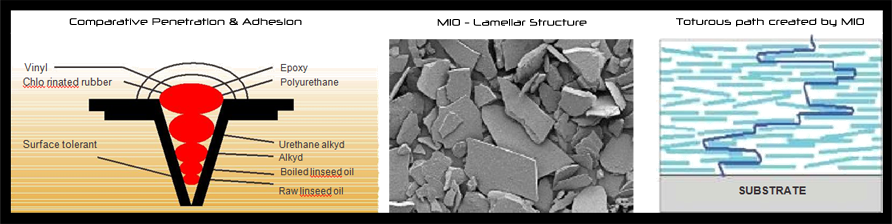

Unique “Low Surface Tension” ensures superior surface wetting & adhesion. Zinc-MIO provide enhanced barrier protection.
(A) CHEMCOINT RL 500 PF : Unique Wet-Tolerant, Rust-Tolerant Epoxy Primer /Finish Providing Both Cathodic Sacrificial as well as Barrier Protection without needing a Top Coat – 3 in 1 System.
(B) 1040 STANGARD (ST) “TRUE” SURFACE TOLERANT EPOXY + 725 PUTC : 3 Years warrantied corrosion prevention on ST2 /ST3, manually prepared, rusty /moist surfaces.

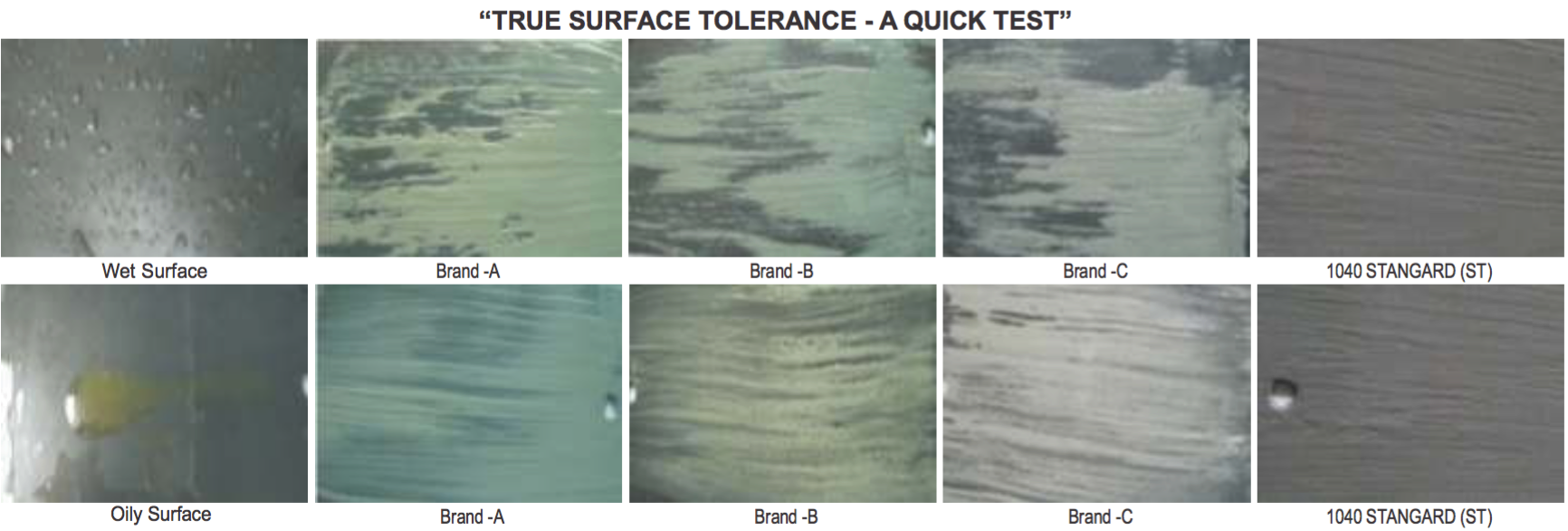

“True surface tolerance” – excellent penetration & adhesion, even on rusty, wet, contaminated surfaces. With combination of MIO, provides an impermeable barrier. Excellent resistance to both mild acids & alkalies. Protects metal – long term. Superior durability…far better than epoxy mastic systems.
APPLICATIONS
(A) ENCAPSULATION OF THERMAL INSULATION CLADDING JOINTS – 710 ALUCLAD : One component, ready to use, high build, flexible joint overlay coating for aluminum cladding.
Hybrid co-polymer. Self priming. Ready to use.
Fast drying. Bright shiny silver finish.
Prevents water penetration from aluminum cladding joints into thermal insulation… and finally corrosion under insulation.
Excellent adhesion to aluminum & other ferrous metals.
Superior abrasion, scratch, U.V & weathering resistance.
(B) COATING OF PIPE SURFACES BELOW CLADDING – 706 STANGARD (ST) heat
resistant – surface tolerant, MIO- metallic zinc fortified cathodic cum barrier protection.
A unique solution to protect metal pipelines operating at high temperature (Upto 180°C continuous & 220°C intermittent) from corrosion under insulation.
Based on “True” Surface Tolerant Technology. Excellent adhesion >1000Psi on ST2/ST3.
Unique combination of atomized zinc(2-5 microns) + effective particle size MIO, provideslong term cathodic as well as barrier protection.
Unique elongation in class(>7%)
APPLICATIONS:
Sealing aluminum cladding.
Refineries, Water, Steam & Hot fluid pipelines.
Chemical processing plants.
Marine & Off-shore cooling towers/platforms.

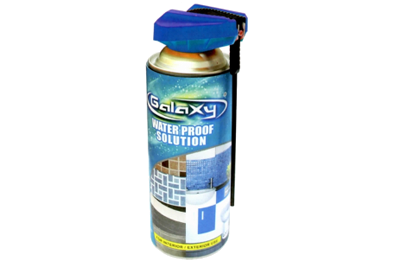

GALAXY WEATHER MULTISEALER
WATER PROOFING BEFORE TILING

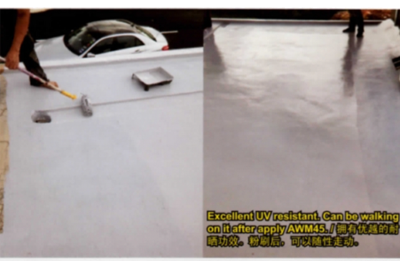

AWM IS A PERFECT WATERPROOFING LAYER FOR CONCRETE BEFORE TILING, ITS HARDNESS GIVES EXCELLENT PROTECTION DURING TILES INSTALLATION.
AWM IS ALSO EXCELLENT FOR OUTDOOR REINFORCED CONCRETE FLOORING ON THE ROOF , RC GUTTER & ETC.
